Home >> Products >> CCTV camera >> Day/Night IR Camera >> HK-U312, HK-U318, HK-U352

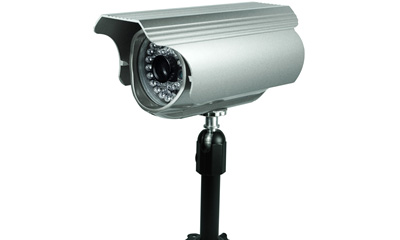

25~30m day night IR camera

Model number: HK-U312, HK-U318, HK-U352
25~30 meters ir cameras
  1. 3.5-8mm adjustable Lens from outside
  2. 36pcs IR leds
  3. 30M IR Distance
  4. Vandalproof Dome

Specifications

Model No. HK-U312 HK-U318 HK-U352
Image Sensor 1/3" sony supper HAD CCD
Total Pixels N: 510(H) x 492(V), P: 500(H) x 582(V)
Scanning System 625TVL,50 fields/sec(PAL) 525TVL,60 fields/sec(NTSC)
IR Led 36pcs IR LEDs
IR Visible Distance  25~30M  (Lens 4/8mm)
Sync System Internal
Minimum Illumination 0.5 Lux F1.2 0.3 Lux F1.2 0.2 Lux F1.2
Resolution 420 TVLs 480 TVLs 520 TVLs
White Balance ATW / AWC switchable
Gain Control AGC ON / OFF switchable
S/N Ratio 48dB (AGC OFF)
Electronic Shutter NTSC: 1/60~1/120,000 sec. PAL: 1/50~1/120,000 sec.
Auto Iris VIDEO/DC
Lens Mount C/CS
B.L.C. Function ON/OFF switchable
Audio Output No
Video Output Composite 1.0V p-p at 75Ω
Gamma Correction 0.45
Operation Temperature -10 °C ~ 50 °C
Operational Humidity within 85%RH
Power Supply DC12V/600mA
Dimension 122 * 85 * 75mm
Weight Gross weight, 0.9kg; net weight, 0.86kg
Package box size: 21.3 * 17.5 * 10.9 cm
