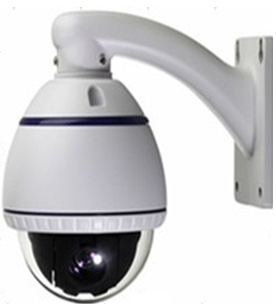

10X zoom mini camera PTZ: HK-SU8110, HK-SU7110

mini PTZ camera

1)Indoor mini PTZ Camera
2)Optical zoom 10X, digital zoom 10X
3)Presets qty: 128; presets speed: 360°/s
4)4 group patterns, recording time for each is not less than 300s
5)8 groups Cruise tours, max. 20 presets/tour
6)4chs Alarm Input and 1ch Alarm output(optional)


  • Specifications


10X zoom mini camera PTZ

Model number: HK-SU8110, HK-SU7110

mini samsung camera ptz

Product Features

    • Optic zoom 10X, digital zoom 10X
    • Presets qty: 128; presets speed: 360°/s
    • 4 group patterns, recording time for each is not less than 300s
    • 8 groups Cruise tours, max. 20 presets/tour
    • 32 private zones
    • 8 zones with title
    • 4chs Alarm Input and 1ch Alarm output (Optional)
    • Automatically recognize protocols, typical Pelco-D, Pelco-P protocols
    • RS485 signal control
    • Manual speed 0.05°/s~360°/s
    • Power supply: DC12V, 800mA
    • Net Weight: about 780g


Model # HK-SU8110 HK-SU7110
Image Sensor 1/4″ Interline Transfer CCD SAMSUNG Camera 1/3″ Sony CCD
Max. Pixels NTSC:811(H)*508(V) 410K PAL: 795(H)*596(V) 470K
Effective Pixels NTSC:768(H) x 494(V) 380K PAL: 752(H) * 582(V) 440K
Resolution 500TVL 540TVL
Scan Format 2:1 interleaved
Zoom 100x(10X Optical zoom, 10x Digital Zoom)
Focus Length f=3.8 to 38mm (F1.8)
Video Output CVBS 1.0Vp-p/ 75
Minimum Illumination Day/Night 0.02Lux Day/Night 0.2Lux
White Balance Auto/Manual(Red&Blue Gain Adjustable)
Shutter speed X128 ~ 1/120000 sec
SSNR Low/Middle/High/Off
Protocol Pelco-D, Pelco-P selectable
Pan/Tilt Speed Preset:360°/Sec,Tilt:0°~180°/Sec;Manual:0.05° ~360°/Sec(Zoom Proportional)
Rotation Range Pan: 360°(Endless) Tilt: 180°(Auto-Flip),95°(Normal Off)
Preset 127 preset(title,camera image setup available)
Pattern 4 pattern(1200 command/pattern, Approx.300s for Each Group)
Cruise Tour 8 Group( Max.20 action entries for Each Group)
Other Function Image Auto-flip,Auto Parking, Power-up Action.etc
Communication RS-485
Privacy Zone 4 Zones
OSD Menu English Menu/PTZ Info
Operation Temp. 0°C~40°C(32°H~104°H)
Operation Humidity 5%-90%
Power DC12V/2A
Installation Wall,Pendant or Ceiling Mount Bracket

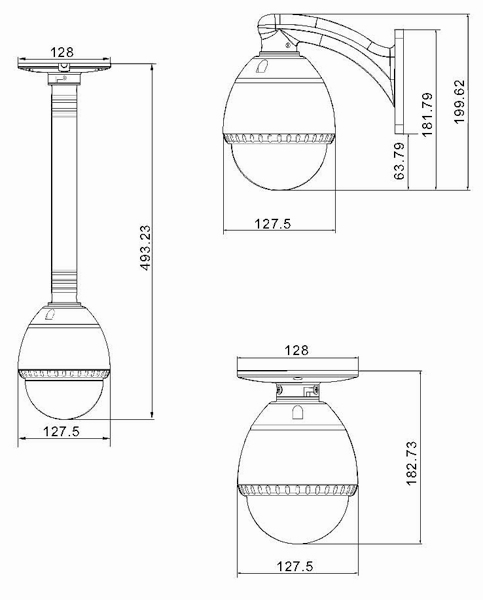

Dimension 139 * 169mm
Weight 1.75Kg
Package box size: 12 * 12 * 9.5cm; 8pcs/Ctn, 20Kg/Ctn
