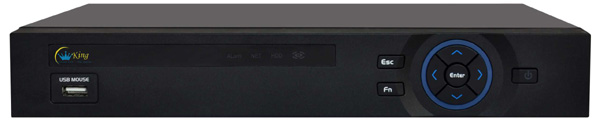

4ch/8ch/16ch 1U POE NVR: HK-NVR5204F-P, HK-NVR5208Q-8P, HK-NVR5216F-16P

CATEGORY AND TAGS:
NVR

1)4/8/16ch IP camera inputs
2)4/8/16ch POE ports
3)Max 8*3M/8*1080P/16*720P recording
4)ONVIF Version 2.3 conformance
5)HDMI / VGA simultaneous video output
6)Support 1 SATA HDDs up to 6TB, 2 USB2.0, 1RJ45(1000M)



enquiry
  • Specifications

4ch/8ch/16ch 1U/2U NVR

Model number: HK-NVR5204F, HK-NVR5208F, HK-NVR5216D

4ch nvr
8ch nvr

Feature

    • 4chs/8chs/16chs IP camera inputs
    • 1ch audio in (For HK-NVR5216D only) & 1ch audio out
    • Max 480fps@1080p recording
    • ONVIF Version 2.0 conformance
    • HDMI / VGA simultaneous video output
    • Max support 2 SATA HDDs up to 8TB, 2 USB2.0, 1RJ45(1000M)
    • Multi-language Support(English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Simplified Chinese, Chinese-Traditional, Turkish, etc)
    • Support KingCCTV cloud(xmeye.net),no need to do router mapping, just 1 step go to internet with KingCCTV cloud technology
    • Support multi-browser(IE, Chrome, Firefox, Safari)
    • support 3G & WIFI extension (For HK-NVR5216D only)
    • support P2P, cloud service

Specifications

Model No. HK-NVR5204F HK-NVR5208F HK-NVR5216D
Main Processor Hi3520D
Operating System Embedded Linux
System resource Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up.
Operation interface 16 bit real color GUI interface support mouse operation
Display screen 1/4 1/4/8/9 1/4/8/9/16
Video standard PAL(625 lines, 50fps); NTSC(525lines, 60fps)
Image encode H.264(High Profile)
Monitor quality Monitor: D1; VGA: High Definition; HDMI: High definition
Playback quality 1080P/D1
Encode capability 1ch 1080P Realtime
Motion detection Each channel can set 192(16*12) detection area
Audio compression G711A
Bidirectional talk support
Record mode manual>alarm>motion detection>timing
Local playback support 1*720P playback support 2*1080P playback support 2*960P playback
Video search Time, date, event, channel search
Space occupation Video: CIF 4~5G/day*chs, D1 16~20G/day*chs, 960H 12G~20G/day*chs; 720P 20~30G/day*chs; 1080P ~40G/day*chs
audio: 691.2M/day*channel
Video storage Local HDD, Network
Back up mode Network backup, USB portable HDD, USB DVD/RW, SATA DVD/RW
Video input 4chs 1080P,4chs D1 for Storage 8chs 1080P, 8chs 720P, 16chs D1 for Storage 16chs 960H for Storage

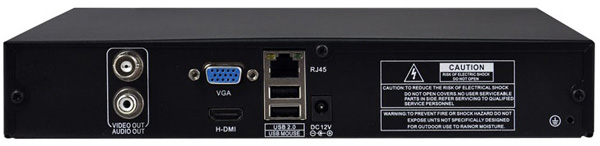

Video output 1ch BNC, 1ch VGA, 1ch HDMI
Video Loop out N/A
Audio input N/A 1ch RCA
Audio output 1ch RCA(200-3000mV, 5KΩ)
Alarm input N/A
Alarm output N/A
Network interface RJ45 10M/100M self-adaptive Ethernet port
PTZ control 1 RS485; support multi kinds of PTZ protocol
USB port 2 * USB2.0
HDD port 1 SATA port(1*4T) 2 SATA port(2*4T)
Power 12V/2A
Consumption less than 5W(not include H.D.D.)
Working Temperature 0℃ ~ +55℃
Working Humidity 10%~90%
Dimension L233*W300*H45
Weight 1.46KG

*Design and specifications are subject to change without notice.
