China CCTV Experts

HD 2.0M network camera

» Network Camera » HD 2.0M network camera

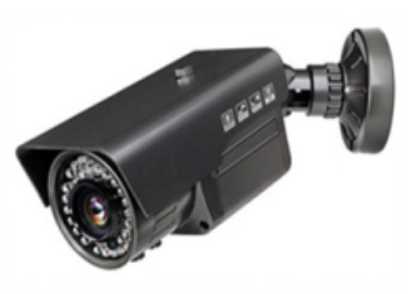

Vari-focal 2.8-12mm motorized 1080P HD IR IP camera: HK-KM220Z

CATEGORY AND TAGS:
HD 2.0M network camera

1)Motorized zoom lens 2.8-12mm
2)IR distance:  40M
3)
Support iPhone, Windows Mobile, BlackBerry, Symbian, Android)
4)ONVIF Ver. 2.2 conformance
5)Support POE (optional)

enquiry
  • Specifications

Vari-focal 2.8-12mm motorized 1080P HD IR IP camera

Model #: HK-KM220Z

Network Features

    • Mobile Phone Support(iPhone, Windows Mobile, BlackBerry, Symbian, Android)
    • Support Multiple Browsers such as FireFox, Chrome, Internet Exploerer
    • Built-in Web server enables the use of a standard Web browser for viewing and management
    • Support dynamic IP address, LAN, Internet (ADSL and Cable Modem)
    • Support protocols: RTSP/ FTP/ PPPOE/ DHCP/ DDNS/ NTP/ UPnP
    • ONVIF Ver. 2.2 conformance
    • Support whole TCP/IP protocol
    • Support overlying DDNS, user name, password and other info
    • Up to 10 viewers can directly access the camera simultaneously

Compression Features

    • Embedded RTOS design, dual core DSP(Hi3516C), pure hardware compression, watchdog
    • 2 Megapixel, 1/2.8″ Megapixel CMOS Sensor.
    • Up to 25 frames per second in all resolutions ranging up to 1080P(1920*1080)
    • Support dual stream, AVI format, H.264, MPEG-4 and MPEG Simultaneous.
    • Low power consuming of the DSP, suit to long time running
    • The encoding parameter can be adjusted dynamically (bit rate/frame rate/image quality)
    • Support 0.1M~6Mpbs bit rate adjustable; support 1~30fps adjustable
    • Audio Compression: support two-way audio Bidrectional Talk, support audio and video synchronized output
    • Built in Micro SD/SDHCx1 slot, 64GB supported(Optional)

Specifications

Model # HK-KM220(-P) HK-KM220Z(-P)-1080P
System Embedded RTOS design, dual core DSP(Hi3516C), pure hardware compression, watchdog
Pixel 2.0 Mega Pixel
Image Sensor 1/2.8″ SONY IMX122 low-illumination CMOS
Min. Illumination 0.1 lx (Color), 0.095 lx (B/W),IR ON 0Lux
Lens Manual Zoom Lens 2.8-12mm Motorized zoom lens 2.8-12mm
Lens interface CS
Day&Night IR-cut
Compression
Video Compression H.264 High Profile, JPEG Screen shot
Main/Extra Stream 1080P(1920*1080)/D1(704*576)
Video output bit rate 32Kbps~16Mbps
Audio Compression G.711a
Max. Resolution 1920*1080
Frame Rate 25fps(1920*1080)
Video Intelligence Video tempering, Line Crossing, Motion, Intrusion, Unattended Baggage detection, Region entrance & exit, Object & exception detection, Video statistic & recognition, etc.
Video Controlling AGC, AWB, WDR, 2D/3D Digital Noise Reduction, ROI, BLC, Edge system Enhancement, Image Adjustment.
Image Setting Saturation, Brightness, Contrast adjustable through Client software or web server
Network features
Storage Network storage, TF card storage(optional)
Intelligent Alarm Motion detect, Video loss, Network disconnection, IP address conflict, Storage full, Storage error
Protocol TCP/IP, HTTP, DHCP, DNS, DDNS, PPPoE, SMTP, NTP ,RTSP
Basic Reset button, Anti-flicker, Dual stream, Heartbeat, Password protection
NVR/HVR YES
Mobile Monitor Support (iPhone, Windows Mobile, BlackBerry, Symbian, Android)
ONVIF 2.2
Multiple Browsers FireFoxChromeInternet Exploerer
Interface
Communication Interface 1pc RJ45 10M/100M self-adaptive Ethernet interface
Video Output 1Vp-p Composite Output(75Ω/BNC)
General parameters
Operating Condition -10~60 °C, Humidity 90% or less(non-condensing)
Power Supply DC12V±10%
Power Consumption 6W MAX
Protection Range IP66
LED 36pcs LEDs, IR distance 40M
Humidity 5-90%
Certification IP66/CE/FCC

*Design and specifications are subject to change without notice.

Download

Class
Date
Title
Download
Datasheet 2016-09-21 HK-KM220-ZP-1080P_Datasheet_20160920
HD IP PTZ Datasheet



 HD IP PTZ Wrranty
