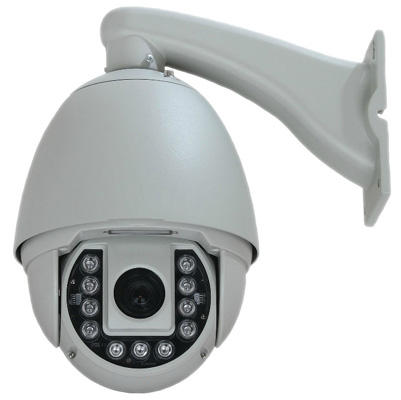

Outdoor Intelligent IR PTZ camera: HK-GIR8182N, HK-GIR8272N, HK-GIR8362N

IR PTZ camera

1)Indoor and Outdoor waterproof IR Speed Dome Camera
2)IR distance:  150M
220 preset points
4)4 Pattern, 4 cruise tour with 16 preset point/tour
5)support alarm , 4CH Alarm in , and 2 CH alarm out
6)Multiple languages for OSD menu: English, Spanish, French


  • Specifications


Outdoor Intelligent IR PTZ camera

Model number: HK-GIR8182N, HK-GIR8272N, HK-GIR8362N

150m ir ptz cam


    • Outdoor waterproof IR Speed Dome Camera
    • The IR distance is  150M
    • Multiple languages for OSD menu, English, Spanish, French etc.;
    • 220 preset points.
    • 4 Pattern,max.15 minutes, max.512 commands.
    • Have 4 cruise tour ,each tour set 16 preset point.
    • 64 bit CPU, slow speed rate 0.05°/s, accuracy 0.01°, smooth and even motion.
    • Remote Firmware upgrade via the RS485 bus;
    • Dome ID, baud rate, communication protocol can be set via the controller;
    • Time Scheduling function;
    • 7″ total metal body construction, waterproof IP66;
    • Supported Protocols: Pelco-D/P.
    • Support ambient light detection, IR illumination on 1-15 grades selectable
    • PWM function, intelligent IR illumination & power consumption is variable, dependant the zoom factor.
    • Remote Firmware upgrade via the RS485 bus.


Model No. HK-GIR8182N HK-GIR8272N HK-GIR8362N
Image Sensor 1/4″ SONY ExView CCD
All-in-one camera Sony 480CP LG or CNB Sony 1010
Total Pixels 440,000 470,000 470,000
Resolution 480 TVLs 540 TVLs 540 TVLs
Lens f=4.1~73.8mm f=3.6~98mm f=3.5~122.4mm
Zoom 18X optical zoom, 12X digital zoom 27X optical zoom, 10X digital zoom 36X optical zoom, 10X digital zoom
Horizontal Angle of View 54.0°(wide), 2.5° (tele) 48.0°(wide), 2.8° (tele) 57.8°(wide), 1.7° (tele)
Minimum Illumination Color 0.7Lux B/W 0.002Lux
S/N Ratio >50dB
Electronic Shutter 1/1~1/10000s 1/50~1/10000s 1s~1/10000s
Privacy zone Yes NO Yes
IR Induce Yes
Color to Black/White Yes
IR distance  150M
Horizontal Rotation Speed 0.02~300°/s
Horizontal Rotation Range 360°
Tilt Rotation Speed 0.02~160º/s
Tilt Rotation Range 90º
Auto Flip Horizontal 180°, Vertical 93°
Auto Control IR LED PWM
360 Scan 1-64 levels setting available
A-B Scan User programmable
A-B Scan speed 1-64 levels setting available
Dwell Preset 5-60s interval available
Preset points 220
Go to preset speed 1-64 levels available
Guard Tours 4 groups
Guard Points Max.16 points, dwell time user selectable
Pattern Scan 4 pcs
Pattern Scan Record Max.15 minutes, max.512 commands
PWR on Action Memory/Pattern 1/Tour 1/360° scan/A-B scan/Preset 1-8/None
Communication Protocol Pelco-D, Pelco-P
Communication RS485
Baud Rate 1200/2400/4800/9600bps
Privacy Mask 8-24pcs (according to zoom module type)
OSD Menu Multiple Languages: English, Spanish, French, German, Italian etc.
3D Location Support
Time Scheduling Function 8 tasks
Operating Temperature Indoor: 0°~ +40°             Outdoor: -40°~ +60°
Operating Humidity ≤95% Non Condensing
Heater & Blower Auto temperature control
Power  AC/DC15-28V ≤3A
IR Illumination Distance 150M
Power Consumption ≤25W
Lightning Protection Transient voltage 6000V
Compatible Camera SONY, SAMSUNG, LG, CNB etc.
IR LED 10pcs Φ20 IR LEDs
