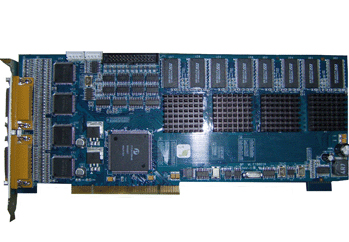

Hikvision Hardware Compression DVR Card: DS-4016HCI

CATEGORY AND TAGS:
Hardware Compression card

1)16 Ch Video + 16 Ch Audio input, H.264 hardware compression
2)Preview: 4CIF
3)Compression: 4CIF, DCIF, CIF, QCIF
4)Support double encoding



enquiry
  • Specifications

Hikvision Hardware Compression DVR Card

Model #: DS-4016HCI

16ch hikvision dvr card



Available Models

Cards are stackable to obtain 64 channels maximum
DS-4016HCI
16 channels video and audio CIF (real time)
or 8 channels video and audio 4CIF (real time)
or 16 channel DCIF (real time)
or 16 channel 4CIF(not real time)

Features & Functions

  • Real-time video and audio compression, no frame lost
  • 4CIF preview resolution
  • Comply with PCI 2.2 standard, a PC can support up to 64 channels
  • Support WINDOWS 2000/XP operating system
  • Setable video quality and bitrate
  • Setable brightness, contrast, saturation and hue of video signal
  • Support motion detection
  • Support OSD, LOGO and MASK overlay
  • Support watermark technology
  • Support double encoding

Specifications

Item Description
Video Format PAL and NTSC
Video Input 16 Ch BNC (1.0Vp-p, 75ohm)
Audio Input 16 Ch BNC (2.0Vp-p, 1Kohm)
Preview Resolution Resolution: 704*576(PAL),704*480(NTSC)
Video Compression H.264, Support CBR, VBR; Frame: 25F/s(PAL),30F/s(NTSC); Output: 32kbps-1000kbps(CIF) or 70kbps-4000kbps(4CIF)
Compression Resolution 4CIF:704*576(PAL),704*480(NTSC); CIF:528*384(PAL),528*320(NTSC); 2CIF:704*288(PAL),704*240(NTSC); CIF:352*288(PAL),352*240(NTSC); QCIF:176*144(PAL), 176*120(NTSC)
Audio Compression OggVorbis, Sample ratio is 16KHz, Output ratio is 16kbps
Power Consumption Less than 7W
Working Temperature -10°C ~ +50°C
Working Humidity 10%~90%
Dimension 185 * 107mm
Computer Configuration (Recommend) Mainboard: Intel 945 or 965 Chipset; Memory: 512MB; Display Adapter: Geforce Mx400/420/440 series or ATI Radeon 7000/7200/7500/8500/9000 X550series
