Full D1 Hikvision Hardware Compression DVR Card: DS-4008HFI

Hardware Compression card

1)8 Ch Video + 8 Ch Audio input, H.264 hardware compression
2)Preview: 4CIF
3)Compression: 4CIF, DCIF, CIF, QCIF
4)Support double encoding


  • Specifications

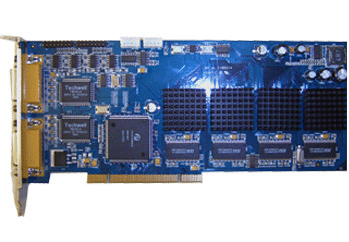

Full D1 Hikvision Hardware Compression DVR Card

Model #: DS-4008HFI

full d1 8ch hikvision dvr card

DS-4008HFI compression board is a professional digital security product, which adopts the most advanced H.264 video compression algorithm and OggVorbis audio compression technology. 8 Ch video & audio input; Each video input can max support 4CIF resolution real time.

Features & Functions

  • Real-time video and audio compression, no frame lost
  • 4CIF preview resolution
  • Comply with PCI 2.2 standard, a PC can support up to 64 channels
  • Support WINDOWS 2000/XP operating system
  • Setable video quality and bitrate
  • Setable brightness, contrast, saturation and hue of video signal
  • Support motion detection
  • Support OSD, LOGO and MASK overlay
  • Support watermark technology
  • Support double encoding



Item Description
Video Format PAL and NTSC
Video Input 8 Ch BNC (1.0Vp-p, 75ohm)
Audio Input 8 Ch BNC (2.0Vp-p, 1Kohm)
Preview Resolution Resolution: 704*576(PAL),704*480(NTSC)
Video Compression H.264, Support CBR, VBR; Frame: 25F/s(PAL),30F/s(NTSC); Output: 32kbps-1000kbps(CIF) or 70kbps-4000kbps(4CIF)
Compression Resolution 4CIF:704*576(PAL),704*480(NTSC); CIF:528*384(PAL),528*320(NTSC); 2CIF:704*288(PAL),704*240(NTSC); CIF:352*288(PAL),352*240(NTSC); QCIF:176*144(PAL), 176*120(NTSC)
Audio Compression OggVorbis, Sample ratio is 16KHz, Output ratio is 16kbps
Power Consumption Less than 7W
Working Temperature -10°C ~ +50°C
Working Humidity 10%~90%
Dimension 220 * 95mm
Computer Configuration (Recommend) Mainboard: Intel 945 or 965 Chipset; Memory: 512MB; Display Adapter: Geforce Mx400/420/440 series or ATI Radeon 7000/7200/7500/8500/9000 X550series
