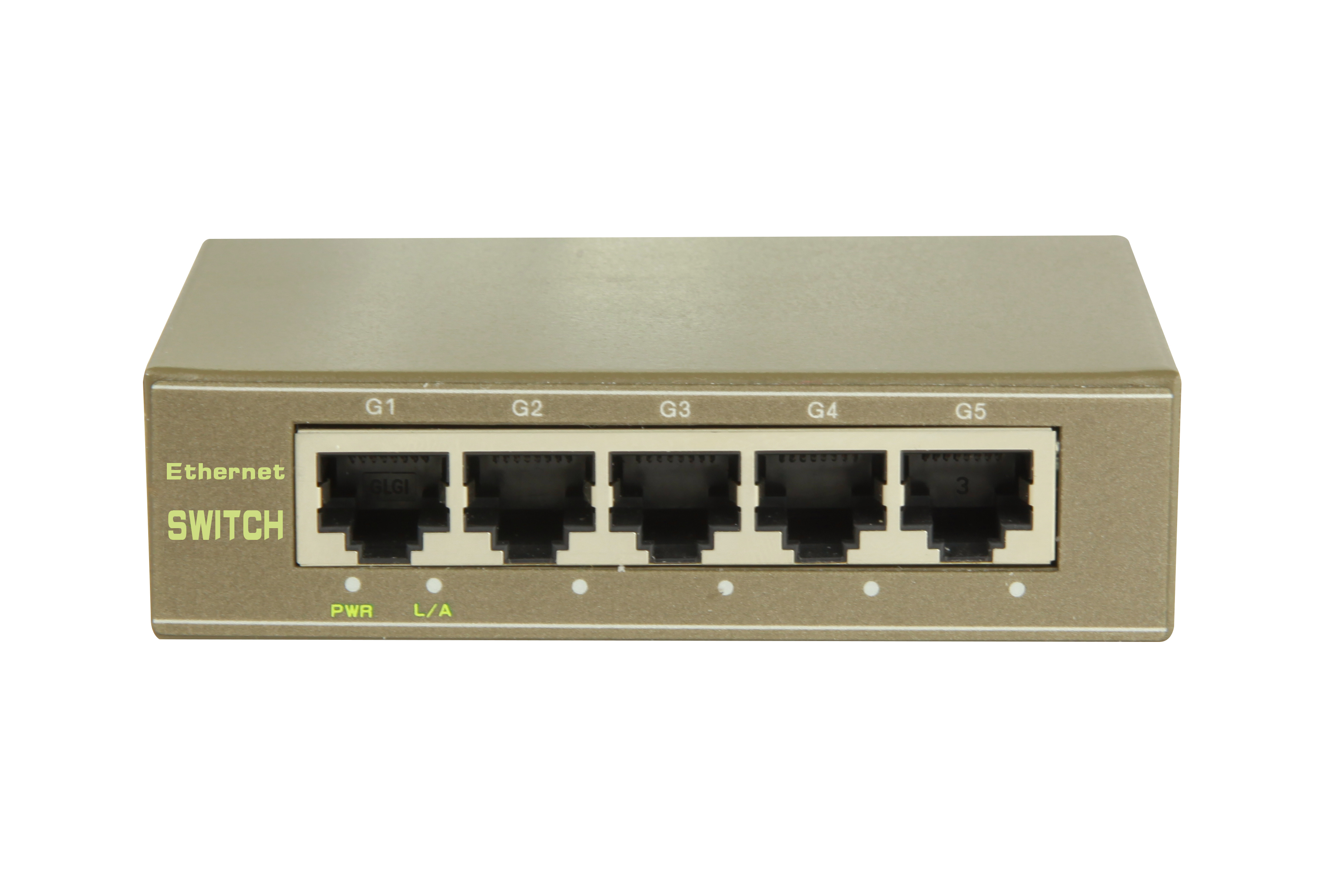

10/100/1000M 5 port POE switch 3005H
Description
HK-POE3005H is designed as CCTV surveillance Network Switch for simple network environment including home, school dormitory, office and small scale surveillance system etc. Large-capacity cache chip design and full port support wire-speed forwarding mode ensure 7*24 hours stable and smooth for video and data transmission. 5*10/100/1000M auto-sensing RJ45 port. Full duplex rate up to 200M. Auto-identify parallel lines and cross lines. Plug and play, expand high-speed network in a fast way.
A housing made of 0.8 mm galvanized industrial-grade steel plates for excellent durability, heat dissipation performance, ensuring stable switch operation, a long service life, and more reliable outdoor security surveillance. Support desktop/ wall mounted installation way. Fashionable design. Can be connected with any computer, printer, smart TV, NAS, wireless AP, NVR and IP Camera etc.
Technical Specification
| Product Name |
5-Port 10/100/1000M Network Switch |
| Model |
HK-POE3005H |
| Interface |
5* 10/100/1000Mbps auto-sensing RJ45 ports(Auto MDI/MDIX) |
| Network Media |
UTP 10Base-T: Cat.3/4/5 (≤100m) |
| UTP 100BASE-TX: Cat.5/Above (≤100m) |
| UTP 1000BASE-TX: Cat.5e/Above (≤100m) |
| Forwarding Mode |
Store-and-Forward |
| Forwarding Rate |
7.44Mpps |
| Back-bound Bandwidth |
10Gbps |
| Buffer Memory |
2M |
| MAC Address Table |
2K |
| Standard Protocol |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab, IEEE802.3z |
| Access Control |
CDMA/CD |
| LED Indicator |
1*power LED，5* Link/Act LED |
| Power Consumption |
Standby State: 0.7W. Max power consumption ＜ 4W |
| Power Input |
AC:100～240V; 50~60Hz; 0.5A |
| Power Output |
9.0V 1.0A (External power adaptor) |
| Dimension |
98mm*70.7mm*27mm（L*W*H） |
| Working Environment |
Working Temperature:-20℃~55℃ |
| Storage Temperature: -40℃~70℃ |
| Working Humidity: 10%~90% Non-condensing |
| Storage Humidity 5%~90% RH（non-condensing） |
| Certification |
CE, FCC, RoHS |
| Packing List |
1*Fast User Guide & 1*Warranty Card |
| 1*5-Port Network Switch |
| 1*Power Adaptor (9V/1A) |
| Warranty |
1 Year |
