Video Balun

» CCTV Accessories » Video Balun

  • CCTV Video Balun: LLT-201A/C,LT-213,LT-301R/T,LLT-401R/T,LLT-410R

    CATEGORY AND TAGS:
    Video Balun
    enquiry
    • Specifications



    CCTV Video Balun

    Model Number: LLT-201A/C
    llt-201a/c
      • 1 Channel passive video transceiver. Receiving and transmitting video signals over UTP cable without using the power supply.
    Item Description
    Spec 1CH Passive
    Video Frequency respons:DC-6Mhz Conmmon-mode/Differential-mode Rejection:15Khz 6Mhz 60dB typ
     Audio/data NO
    Power NO
     Impedance Coax,male BNC:75ΩUTP(Screwless)Terminal Block or UTP RJ45 Data Connector:100Ω
     Wire type One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal:DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m)
    Surge suppression —————
     Control NO
    UTP Port Terminal Block
    Dimensions(mm) 70*25*22
     Weigth(g) 28
    Environment Temperature:-10~+50℃ Humidity:0~95%
    Model Number: LT-213
    lt-213
      • 1 Channel passive transceiver. Receiving and transmitting video/audio/power over UTP cable.
    Item Description
    Spec 1CH Passiv Power/ Video/ DATE PVD Video Transceiver
    Video Frequency respons: DC-6Mhz Common-mode/Differential-mode Rejection: 15khz –6Mhz 60dB typ 60dB typ
    Audio/data YES
    Power NO
    Impedance Coax,male BNC:75ΩUTP(Screwless)Terminal Block or UTP RJ45 Data Connector:100Ω
    Wire type One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal:DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m)
    Surge suppression ————–
    Control NO
    UTP Port RJ45
    Dimensions(mm) 43*20*2.1
    Weigth(g) 35
    Environment Temperature:-10~+50℃ Humidity:0~95%
    Model Number: LT-301R/T
    lt-301r/t
      • 1 Channel active video transceiver. This device is capable of receiving and transmitting video signal over UTP cable.
    Item Description
    Spec 1CH Active
    Video Frequency respons:DC-6Mhz Conmmon-mode/Differential-mode Rejection:15Khz 6Mhz 60dB typ
    Audio/data No
    Power 12VDC
    Impedance Coax,male BNC:75ΩUTP(Screwless)Terminal Block or UTP RJ45 Data Connector:100Ω
    Wire type One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal:DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m)
    Surge suppression 6000V 1.2μ S*5μ S
    Control Brightness and Sharpness
    UTP Port Terminal Block
    Dimensions(mm) 103*70*30
    Weigth(g) 100
    Environment Temperature:-10~+50℃ Humidity:0~95%

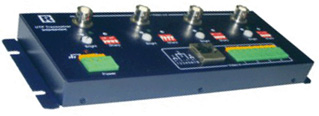

    Model Number: LLT-401R/T
    lt-401r/t
      • 4 Channels active video transceiver. This device is capable of receiving and transmitting videos signal over UTP cable.
    Item Description
    Spec 4CH Active
    Video Frequency respons:DC-6Mhz Conmmon-mode/Differential-mode Rejection:15Khz 6Mhz 60dB typ
    Audio/data No
    Power 12VDC
    Impedance Coax,male BNC:75ΩUTP(Screwless)Terminal Block or UTP RJ45 Data Connector:100Ω
    Wire type One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal:DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m)
    Surge suppression 6000V 1.2μ S*5μ S
    Control Brightness and Sharpness
    UTP Port RJ45 and Terminal Block
    Dimensions(mm) 200*70*38
    Weigth(g) 430
    Environment Temperature:-10~+50℃ Humidity:0~95%

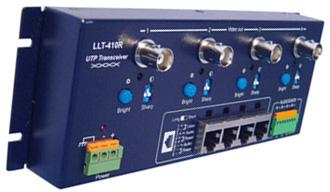

    Model Number: LLT-410R
    llt-410r
      • 4 Channels active video/audio/power receiver. This device is capable of receiving video, audio and power DC 12V over UTP cable.
    Item Description
    Spec 4CH Active Video/date/Power Power-Video-Data (PVD) Transceiver
    Video Frequency respons:DC-6Mhz Conmmon-mode/Differential-mode Rejection:15Khz 6Mhz 60dB typ
    Audio/data YES (Audio 14dB)
    Power 17VDC
    Impedance Coax,male BNC:75ΩUTP(Screwless)Terminal Block or UTP RJ45 Data Connector:100Ω
    Wire type One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal:DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m)
    Surge suppression 6000V 1.2μ S*5μ S
    Control Brightness/Range
    UTP Port RJ45 and Terminal Block
    Dimensions(mm) 200*70*38
    Weigth(g) 390
    Environment Temperature:-10~+50℃ Humidity:0~95%
