18-PORT 10/100 SWITCH WITH 16-PORT POE: POE3116P

CATEGORY AND TAGS:
PoE Switch

1)18-PORT 10/100 SWITCH WITH 16-PORT POE
2)16 10/100 Mbps Ports with AutoUplink™
3)8K entry MAC address table of the PoE Switch with auto-learning and auto-aging
4)18 10/100Mbps RJ45 Ports
5)Total Power Consumption: 270W max
6)PoE Watt budget: 110W
7)IEEE802.3af Power Consumption: 270W max(Ports 1 – 16)



enquiry
  • Specifications

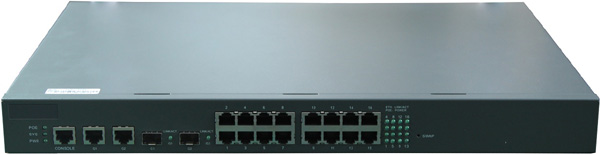

18-PORT 10/100 SWITCH WITH 16-PORT POE

Model Number: POE3116P
16-port switch



Product introduction

The PoE Switch POE3116P provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. The five Fast Ethernet ports can be used for any 10/100 Mbps link and four of these ports can supply industry-standard IEEE 802.3af power. Advanced auto-sensing algorithm gives power only to IEEE802.3af end devices, so no need to worry about damaging proprietary PoE or non-PoE equipment. In addition, it discontinues the power when PoE devices are disconnected. Easy and reliable, the PoE Switch POE3116P  automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink™.
The affordably priced PoE Switch POE3116P delivers PoE to any small business network that wants to simplify the installation of wireless access points and IP-based surveillance cameras. These devices are optimally installed on a ceiling or high on a wall, away from most electrical outlets. PoE eliminates the requirement for a dedicated electrical outlet to power these devices. This allows for flexibility in situating devices where AC power is difficult to access and lowers installation costs. Compact and flexible, the PoE Switch POE3116P is ideal for small business networks that need to inexpensively use PoE to deploy wireless access points and IP-based network surveillance cameras.



Features

    • IEEE 802.3af power on up to 16 ports
    • Supply power to wireless access points and surveillance cameras over Cat-5 cabling
    • 16 10/100 Mbps Ports with AutoUplink™
    • Supports PoE power up to 15.4W for each PoE port
    • Supports PoE power up to 53W for all PoE ports
    • Supports PoE IEEE 802.3af compliant PDs
    • Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
    • 8K entry MAC address table of the PoE Switch POE3116P with auto-learning and auto-aging
    • LED indicators for monitoring power, link, activity and speed
    • External power adapter supply



Flexible

    • Choose to plug in up to five Ethernet or Fast Ethernet devices and mix in up to four IEEE802.3af IP-based devices like wireless access points or IP-based network surveillance cameras. Place these IEEE802.3af-compliant devices where they belong – high up on walls and ceiling for maximum coverage – or anywhere else you need them. Power and data are carried over standard Cat 5 cabling.



Plug and Play

    • The standards-based PoE Switch POE3116P senses and adjusts for network speed and cabling type automatically, for easy integration into your existing 10/100 Ethernet network. For PoE, the switch automatically detects IEEE802.3af-compliant devices, and supplies power as needed. Front panel LEDs keep you informed of switch and PoE status.



Quiet and Compact

    • Engineered for compact convenience, it durable metal case that is easily positioned on your desktop or a wall, using the included mounting hardware. The fan-less design quietly integrates with your small office environment.



Great Value

    • With data switching and Power over Ethernet integrated into one unit, the PoE Switch POE3116P saves space, reduces cables and eliminates the requirement for dedicated electrical outlets – lowering installation costs, simplifying installation of PoE-capable devices, and eliminating the need for electricians or extension cords. All in all, a great benefit for a modest price.



Specifications

Item Specification
Product 18-PORT 10/100 SWITCH WITH 16-PORT POE
Type POE3116P
Network Ports 18 10/100Mbps RJ45 Ports; AUTO Negotiation/AUTO MDI/MDIX
Transmission Method Store-And-Forward
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m); 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
Performance Specifications Bandwidth: 1.6 Gbps
Network latency: Less than 20 μs for 64-byte frames in store-and-forward mode for 100 Mbps to 100 Mbps transmission
Buffer memory: 96 KB embedded memory per unit
Address database size: 1,000 media access control (MAC) addresses per system
Addressing: 48-bit MAC address
Mean Time Between Failure (MTBF): 190,000 hours (~ 21 years)
Acoustic Noise: 0 dB
Network Protocol and Standards IEEE 802.3i 10BASET; IEEE 802.3u 100BASET; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI; IEEE 802.3af
Status LEDs System: Power, PoE Maximum Power; Per Port: Link, Activity, Speed, PoE Active, PoE Fault
Power Supply Total Power Consumption: 270 W maximum; PoE Watt budget: 110W; IEEE802.3af Power Consumption: 270 W maximum (Ports 1 – 16); 48VDC, 2. 5A power output; plug is localized to country of sale
Physical Specifications Dimensions (H x W x D): 315 x 440 x44mm; Weight: 1.55kg
Environmental Specifications Operating temperature: 0 to 55° C
Storage temperature: -20 to 75°C
Operating humidity: 90% maximum relative humidity, non-condensing
Storage humidity: 95% maximum relative humidity, non-condensing
Operating altitude: 10,000 ft (3,000 m) maximum
Storage altitude: 10,000 ft (3,000 m) maximum
Electromagnetic Emissions CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B; CTick; EN 55024
Safety CE Mark, commercial; CE/LVD EN60950
Warranty 1 years for PoE Switch; 2 years for power supply
Package Contents 18-PORT 10/100 SWITCH WITH 16-PORT POE (POE3116P); AC Adapter; Wall-mount kit; Installation guide; Warranty/Support Information card

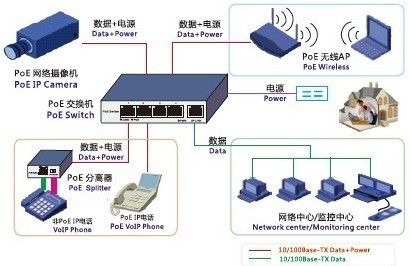

Application

    • Providing 16-Port PoE in-line power interfaces, the POE3116P can easily build a power centrally-controlled IP phone system, IP Camera system and Wireless AP group for the enterprise. For instance, up to 16 PoE IP cameras can be installed around the corner in the company for surveillance demands or up to 16 PoE Wireless AP to build a wireless roaming environment in the office. Without the power-socket limitation, the Switch makes the installation of cameras or Wireless AP more easily and efficiently.
