IR Array Camera

» Discontinued Products » Analog CCTV camera » IR Array Camera

30m IR array camera: HK-UA312, HK-UA352, HK-UA365, HK-UA370

CATEGORY AND TAGS:
IR Array Camera
enquiry
  • Specifications

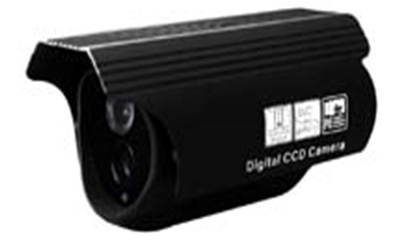

30m IR array camera

Model number: HK-UA312, HK-UA352, HK-UA365, HK-UA370

30 meters ir array cameras
  • Color 1/3″ Sony CCD
  • WDR/BLC/ECLPS
  • Ultral High Resolution 700TVL
  • 3D-DNR
  • 8X Digital Zoom
  • Zone Motion detection
  • Privacy Region Shielded
  • O.S.D Menu
  • 1pc New Generation Array Leds, IR Distance  30M
  • IR Cut is optional

Specifications

Model No. HK-UA312 HK-UA352 HK-UA365 HK-UA370
Image Sensor 1/3″ sony super HAD CCD 1/3″ sony super HAD CCD 1/3″ sony super HAD CCD 1/3″ sony super HAD CCD II
Type Color/Monochrome
Total Pixels PAL: 500(H)*582(V) NTSC: 510(H)*492(V) PAL: 500(H)*582(V) NTSC: 795(H)*596(V) PAL: 795(H)*596(V) NTSC: 811(H)*508(V) PAL: 795(H)*596(V) NTSC: 811(H)*508(V)
Scanning System 625TVL,50 fields/sec(PAL) 525TVL,60 fields/sec(NTSC)
IR Led 1pc New generation LED Array
IR Visible Distance  30M
Lens 8/12/16mm CS lens optional
Sync System Internal
Minimum Illumination 0.5 Lux F1.2 0.05 Lux F1.2 0.05 Lux F1.2 0.05 Lux F1.2
Resolution 420 TVLs 520 TVLs 650 TVLs 700 TVLs
White Balance ATW / AWC switchable
Gain Control AGC ON / OFF switchable
S/N Ratio 48dB (AGC OFF)
Electronic Shutter NTSC: 1/60~1/120,000 sec. PAL: 1/50~1/120,000 sec.
Auto Iris VIDEO/DC
Lens Mount C/CS
B.L.C. Function ON/OFF switchable
Audio Output No
Video Output Composite 1.0V p-p at 75 ohm
Gamma Correction 0.45
Operation Temperature -20 °C ~ 50 °C
Operational Humidity within 85%RH
Power Supply DC12V±10% Max 2.0W
Net Weight 1.3Kg
