CCTV Security TesterPRO: HK-TM803

CATEGORY AND TAGS:
CCTV Tester/ Keyboard

1)3.5" TFT-LCD , 960(H) * 240(V) resolution
2)Adjustable brightness, contrast, color of LCD
3)Video Level testing, video signals measured in IRE or mV
4)Automatically identify and adapt the video mode of NTSC and PAL
5)Colorbar Video signal generator, transmit/receive colorful images
6)Support 20+ kinds of PTZ controller protocols: PELCO-P, PELCO-D, SAMSUNG, et.
7)Support RS232 and RS485 interface, the rate 150~19200bps



enquiry
  • Specifications

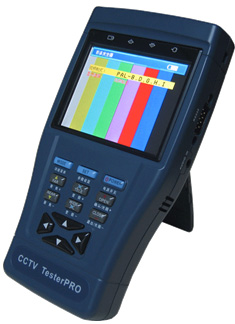

CCTV Security TesterPRO

Model #: HK-TM803
PTZ CCTV tester

HK-TM803 is developed for the On-Site installation and maintenance of video monitoring system. It can be used for displaying video, controlling PTZ, DC12V1A power for camera, Audio input test, generating images, capturing data of RS485 and testing LAN cable etc. Its functions, easy operation, and portability makes it simple for the CCTV technician to install and maintain CCTV system, improving work efficiency and get the labor cost down.

Applications

  • 1) CCTV system installation and maintenance
    2) Dome camera and All in one camera testing
    3) The CCTV transmitting channel testing
    4) PTZ controller

Features

  • 3.5″TFT-LCD , 960(H) * 240(V) resolution
  • DC12V power output
  • Audio input
  • Adjustable brightness, contrast, color of LCD
  • Video Level testing, video signals measured in IRE or mV
  • Automatically identify and adapt the video mode of NTSC and PAL
  • Colorbar Video signal generator, transmit/receive colorful images
  • Support more than twenty kinds of PTZ controller protocols. For example, PELCO-P, PELCO-D, SAMSUNG etc.
  • Capture the PTZ protocol to assist the setting personnel to find out the control protocol and therefore easily target the problematic equipment.
  • PTZ address scanning, search up the ID of PTZ camera.
  • Support RS232 and RS485 interface, the rate 150-19200bps
  • Powerful in testing LAN cable, measuring the connecting status and displaying the sequence of connection
  • PTZ(P/L & Zoom) Control: Control the status of P/L, zoom in/out the camera, adjust the aperture, foci and setting parameters, run and call the preset.
  • PTZ address scanning, search up the ID of PTZ camera
  • Lithium Ion Polymer Batteries(3.7V DC2000mAh), more reliable, and work 11 hours
  • Easy to use that the train is almost unnecessary

Specifications

Item HK-TM803
Video test
Signal mode NTSC/PAL (Auto Adjust)
Display 3.5 inch TFT-LCD, 960 x 240 resolution
LCD adjust Adjustable brightness, contrast, color of LCD
Video IN/OUT 1 channel BNC Input & 1 channel Output
Video Output Mode 1.0 Vp-p
Video Level test
Level test Video signals measured in IRE or mV
Power output
Power output DC12V, 1A
Audio test
Audio input 1 channel Audio input
PTZ controller
Communication RS232, RS422 simplex and RS485
PTZ control Compatible with more than 20 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc. customized
Baud rate 150, 300, 600, 1200, 2400, 4800, 9600, 19200bps
Video Signal Generation
Color bar generation Output 1 channel color bar video signal for testing monitor
UTP cable test
UTP cable test Test UTP cable connection state and display in the screen. Read the number of the test box.
PTZ data Capture and display
PTZ Data Test Capture and Analyze the PTZ data sent from controlling device
PTZ address scanning
PTZ address scan Search up the ID of PTZ camera
POWER
Power Adapter DC5V, 2A
Battery 1 pcs Lithium Ion Polymer Batteries, 3.7V DC 2800mAh
Rechargeable 4 hours recharging time, work for 15 hours
Low Consumption Sleeping mode, display battery power state
Other parameters
Working Temperature -0~50°C
Working humidity 30% ~ 90%
Dimension 94 * 175 * 40mm
Weight Gross weight, 1.28kg; net weight, 0.36kg
Box size 26 * 19.5 * 9cm
