Home >> Products >> DVR >> 960H DVR >> HK-S8208F, HK-S8216F

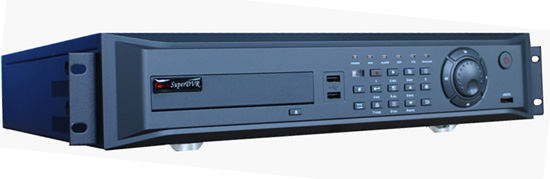

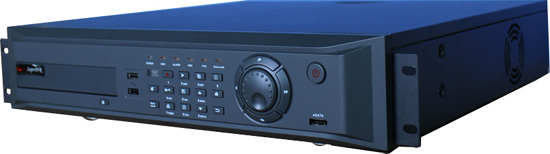

H.264 2U 3G network 960H DVR

Model #: HK-S8208F, HK-S8216F

960H network DVR
3g network 960H DVR
functions of standalone DVR

Features

  1. The video compression is H.264, supports VBR as well as CBR, selectable video picture quality
  2. 8/16 channel 960H/FD1 video input 2U DVR
  3. Support 8 HDDs, 2 eSATA, 4 USB Interfaces
  4. Support Icon Interface,User Friendly & Easy-Operate
  5. Support AVI Backup, Snapshot, Record Lock, Record Cutting
  6. Quick Backup when Playback
  7. Support 3G Network Access
  8. Max 8 Network Accessing Users
  9. Support Eliminating Bad Disk, HDD Record Storage Group, HDD R/W Control
  10. Support HDMI/VGA/BNC/SPOT Simultaneous Output
  11. Support PTZ, Manual Alarm, Alarm In/Out
  12. Support CMS, Web View and Mobile View(IPAD, Iphone & Android)
  13. IR Remote Extension Cord
  14. Support Multiple Browser(FireFox, Chrome, Internet Exploerer, Safari)

Specifications

Model No. HK-S8208F HK-S8216F
Compression Format H.264, supports VBR as well as CBR
Operating system Embedded LINUX
Video Input 8CH BNC(1.0VP-P, 75Ω) 16CH BNC(1.0VP-P, 75Ω)
Video Output 1 BNC, 1 VGA, 1 HDMI, 1 SPOT
Audio Input 8CH BNC 16CH BNC
Audio Output 1ch BNC
Audio Compression G.711A
Audio Bidirectional Talk 3.5mm MIC Input Interface
Alarm Input 8CH 16CH
Alarm Output 4ch
Preview Resolution 960H: PAL(960*576), NTSC(960*480); FD1: PAL(704*576), NTSC(704*480); VGA/HDMI: 1920*1080
Preview Display 1ch/ 4ch/ 8ch/ 9ch 1ch/ 4ch/ 8ch/ 9ch/ 12ch/ 16ch
Preview Privacy Masking 4 zones Maximum, On DVR
Recording Resolution 8ch FD1/CIF/960H/Q960H 16ch FD1/CIF/960H/Q960H
Record Mode Manual, Schedule, Motion, Alarm
Record Interval Pre-record, 5~30s; Post-record, 0~180s
Playback Channel 8ch/16ch 960H Full Channels Realtime Playback
Playback Search Mode Time, Date, Record Mode, Smart Search, Quick Playback
Playback Privacy Masking 4 Zones Maximum, On DVR and PC
3G Network Support 3G Modem
Remote Operation WEB(FireFox, Chrome, Internet Exploerer, Safari)
Mobile Support Support (IPhone, Andorid, Ipad)
Backup USB Disk/ USB HDD/ USB CD&DVD-RW/ eSATA / Internal SATA burner/ Network Download
HDD 8 HDD(Max support 4TB each), 2 eSATA(Front 1,Back 1)
Network Interface 1 RJ-45 10/100M/1000M adaptive Ethernet Interface
USB Interface 4 Interfaces( Front 2 & Back 2)
Auxiliary Interface 1 RS-485(FDX), 1 RS232, 1 IR Extension Cord
Storage Temperature& Humidity -20~65°C/ 10~90% RH (No Condenser)
Operation Temperature& Humidity -10~45°C/ 15~85% RH
Power Adapter 220/110V, 50/60HZ
Power 67W 71W
Dimension(L*W*H) 440 * 440 * 88mm
Weight Gross weight, 10kg; Net weight, 7.1kg

Applications

  • 960H DVR, H.264 compression, can display up to 16 Cameras, support 8ch/16ch 960H Full Channels Realtime Playback, Recommended installation areas are Securities Companies, Change Booths, Pawnshops, Jewerlers, Galleries, Exhibition Halls, Department Stores, Convenience Stores, Discount Offices, Hospitals, Police Stations, Subway Stations, Airports, Banks, etc.

  • Support Google Chrome browser
    support Chrome browser
  • Support Firefox browser
    support FireFox browser
  • Support IE browser
    support IE browser
