Home >> Products >> DVR >> D1 DVR >> HK-S2204F, HK-S2208F, HK-S2216F

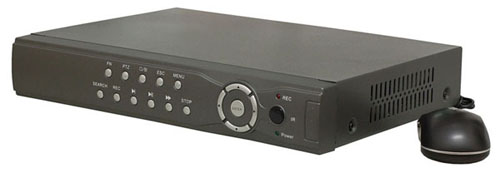

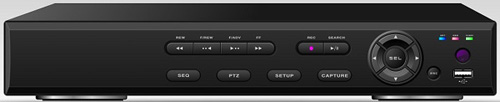

H.264 standalone D1 DVR

Model #: HK-S2204F, HK-S2208F, HK-S2216F

h264 d1 network DVR
h 264 d1 network DVR
h 264 d1 DVR
functions of standalone DVR

Features

  1. H.264 compression algorithm ideal for standalone DVR
  2. Support Multi-language: English, Italian, Turkish, Russian, French, Portuguese, Spanish, Polish, Hebrew, Thai, Traditional Chinese, Japanese.
  3. New standard for professional DVR with high performance and competitive price.
  4. Support Mobilephone Surveillance with Symbian , Windows CE,Iphone , Google Android
  5. Realtime live display up to 4/8/16 camera with 720P high definition.
  6. 1,2,4,8,16 channel simultaneous realtime playback
  7. Support CIF realtime recording, support HD1,D1 non realtime.
  8. Dual encoding streams flexible for network transmission and mobile phone monitoring.
  9. Multiple function: Live, Recording, Playback, Backup & Remote access.
  10. Smart video detection: motion detection, camera blank, video loss.
  11. Powerful network software:built-in web server, multi-DVR client, MSS(mobile phone surveillance software) & CMS.
  12. Supports SATA HDD (maximal value of each hard disk is up to 2TB)
  13. Support Wireless 3G USB Modem.

Specifications

Model No. HK-S2204F HK-S2208F HK-S2216F
Compression Format H.264 / G.711
Operation System Embedded LINUX
Main Processor High-performance embedded microcontroller
Control Mode Front panel, USB mouse, IR remote control, Keyboard, Network
System Resources Pentaplex function: live, recording, playback, backup & remote access
Video Input BNC x 4, 1.0VP-P,75O BNC x 8, 1.0VP-P,75O BNC x 16, 1.0VP-P,75O
Video Output 1 TV, BNC(1.0Vp-p, 75Ω), 1 VGA
Video Standards PAL(100f/s); NTSC(120f/s) PAL(200f/s); NTSC(240f/s) PAL(400f/s); NTSC(480f/s)
Video Resolution D1/4CIF(704*576/704*480), HD1(704*288/640*240), CIF(352*288/352*240)
Main Stream Record Speed CIF:(1-25/30f/s); HD1:(1-12/15f/s); D1:(1-5f/s/ch) CIF(1-25/30f/s); HD1(1-12/15f/s); D1(1-5f/s/ch) CIF(1-25/30f/s/ch)
Extra Stream Speed QCIF(1~25/30fps)
Video Image Quality Super Best, Well, Good, Medium, Normal and bad
Recording Mode Manual / Timer / Motion
Audio Input/Output 4 audio input, 1 audio output (RCA) 4 audio input, 1 audio output
Hard Disk Storage 1 * SATA HDD (capacity up to 2TB) 2 *SATA HDD
Alarm Input/Output 4 alarm input,1alarm output
Multiplex Operation Live display / record / playback / backup / network operations
Playback mode Multiple slow and rapid play speeds, manual and single-frame play modes,and support positioning the time by driving the sliding bar
Backup Device USB 2.0 flash drive / USB moving Hard disk / Network
Pre-alarm Recording recording for 5 seconds before alarming
Network Protocol TCP/IP, PPPOE and DDNS
Ethernet 10/100 Base-T. Supports remote control and live view via Ethernet
Web Interface Internet Explorer (5 users access simultaneously)
Operating System: Windows Vista / XP / 2000
VGA Interface Built-in
IR Remote Control YES (IR receiver built-in)
Video Loss Detection Yes
Video Adjustable Hue / Saturation / Contrast / Brightness
PTZ Control Yes
USB Mouse Yes
Power Source 12V DC(±10%)
Key Lock Yes(Password Protection)
System Recovery System auto recovery after power failure
Dimension 1U, 315mm(W)x52mm(H)x224mm(D) 2U, 440mmx460mmx89mm
Working Temperature -10 ~ +55°C
Working Humidity 10%- 90%
Weight 3.0KG(No HDD)

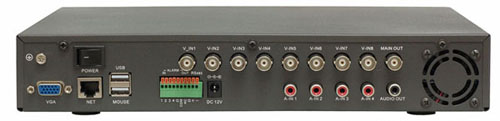

Connections

Connections


Application

DVS real host,super-network functions,Support IE browser centralized monitoring and CMS Software for multiple DVR from diferent place (up to 64 DVR view per screen) simultaneously, per screen can monitoring and playback from multiple DVR images, thorough solve most of the DVR can only manage a single DVR,as well as monitoring and playback can not be a problem at the same time.
application illustration

CMS software

CMS software
Login
Two logging modes are provided: by IP address and by domain.

Control
COMMON: Reboot server, shutdown server, remote upgrade.
VIDEO: remotely adjust the video frequency, brightness, chromaticity, contrast and saturation degree to the best visual effect
LOG: The user can check the logs in the hard disk on the DVR
DOWNLOAD: remotely download files from the hard disk on the DVR,and save them locally for backup or play.
Setup
Common setup, coding setup, visual recording setup, alarm setting, cradle head setup, movement monitoring, video loss, and shielding alarm
PTZ Control
ZOOM, FOCUS, IRIS, PANT, TITL
Window browsing mode
switching: single windows, 4 windows, 6 windwos, 8 windows, 9 windows 16 windows,32 windows and 64 windows
Toolbar
Start, pause, Stop, Slow Play, Fast Play Single Frame, Screenshot, Video Recording, Playbak, Volume Control, Total time for file playing.

Software / User's Manual Download

KingCCTV HK-S2204F/S2108F Standalone DVR Manual(1,637KB)
Mobile Manual for KingCCTV HK-S2204F/S2108F Standalone DVR(957KB)
CMS Software for Standalone DVR HK-S2204F/S2108F(1,011KB)
