  • 16ch/24ch/32ch 2U NVR: HK-NVR5816F, HK-NVR5824F, HK-NVR5832F


    1)16/24/32ch IP camera inputs
    2)1ch audio in & 1ch audio out
    3)Max 960fps@1080p recording
    4)ONVIF Version 2.0 conformance
    5)HDMI / VGA simultaneous video output
    6)Support 8 SATA HDDs up to 48TB, 2 USB2.0, 1RJ45(1000M)


    • Specifications

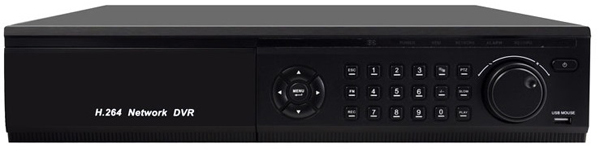

    16ch/24ch/32ch 2U NVR

    Model number: HK-NVR5816F, HK-NVR5824F, HK-NVR5832F

    24ch nvr
    32ch nvr

    FeatureChina KingCCTV manufacture,produce 32chs NVR,24chs nvr,8hdd nvr and profesional nvr

      • 16chs/24chs/32chs IP camera inputs
      • 1ch audio in & 1ch audio out
      • Max 480fps@1080p recording
      • ONVIF Version 2.0 conformance
      • HDMI / VGA simultaneous video output
      • Support 2 SATA HDDs up to 8TB, 2 USB2.0, 1RJ45(1000M)
      • Multi-language Support(English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Simplified Chinese, Chinese-Traditional, Turkish, etc)
      • Support multi-browser(IE, Chrome, Firefox, Safari)
      • support 3G & WIFI extension
      • support P2P, cloud service


    Model No. HK-NVR5816F HK-NVR5824F HK-NVR5832F
    Main Processor Hi3535
    Operating System Embedded Linux
    System resource Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up.
    Operation interface 16 bit real color GUI interface support mouse operation
    Display screen 1/4/8/9/16 1/4/8/9/16/24 1/4/8/9/16/24/32
    Video standard PAL(625 lines, 50fps); NTSC(525lines, 60fps)
    Image encode H.264(High Profile)
    Monitor quality Monitor: D1; VGA: High Definition; HDMI: High definition
    Video input 16chs 3MP 24chs 1080P 32chs 1080P
    Local playback 4*3MP 4*1080P 8*1080P
    Motion detection Each channel can set 192(16*12) detection area
    Audio compression G711A
    Bidirectional talk support
    Record mode manual>alarm>motion detection>timing
    Video search Time, date, event, channel search
    Space occupation Video: CIF 4~5G/day*chs, D1 16~20G/day*chs, 960H 12G~20G/day*chs; 720P 20~30G/day*chs; 1080P ~40G/day*chs
    audio: 691.2M/day*channel
    Video storage Local HDD, Network
    Back up mode Network backup, USB portable HDD, USB DVD/RW, SATA DVD/RW

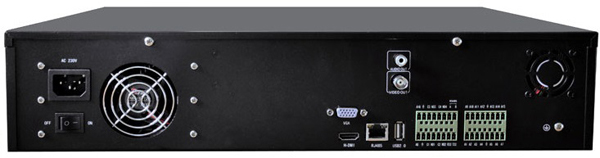

    Video output 2ch BNC, 1ch VGA, 1ch HDMI
    Video Loop out N/A
    Audio input N/A
    Audio output 1ch RCA(200-3000mV, 5KΩ)
    Alarm input 16chs
    Alarm output 4chs
    Network interface RJ45 10M/100M self-adaptive Ethernet port
    PTZ control 1 RS485; support multi kinds of PTZ protocol
    USB port 2 * USB2.0
    HDD port 8 SATA port(8*4T)
    Power ATX Power Supply
    Consumption less than 15W(not include H.D.D.)
    Working Temperature 0℃ ~ +55℃
    Working Humidity 10%~90%
    Dimension L430*W440*H93
    Weight 7.5KG
