  • 4ch/8ch/16ch 1U/2U NVR: HK-NVR5604Q, HK-NVR5616Q, HK-NVR5624F

    CATEGORY AND TAGS:
    NVR

    1)4/16/24ch IP camera inputs
    2)Max 4*1080P realtime playback
    3)Max 8*5M/16*3M/24*1080P/32*960P recording
    4)ONVIF Version 2.3 conformance
    5)HDMI / VGA simultaneous video output
    6)Support 2 SATA HDDs up to 12TB, 2 USB2.0, 1RJ45(1000M)



    enquiry
    • Specifications

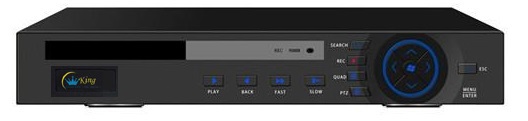

    4ch/8ch/16ch 1U/2U NVR

    Model number: HK-NVR5604Q, HK-NVR5616Q, HK-NVR5624F


    Feature

      • 4chs/8chs/16chs/24chs IP camera inputs
      • 1ch audio in & 1ch audio out
      • Max 4*3M/4*1080P real-time local playback
      • ONVIF Version 2.3 conformance
      • HDMI / VGA simultaneous video output
      • Support 2 SATA HDDs up to 12TB, 2 USB2.0, 1RJ45(1000M)
      • Multi-language Support(English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Simplified Chinese, Chinese-Traditional, Turkish, etc)
      • Support KingCCTV cloud(xmeye.net),no need to do router mapping, just 1 step go to internet with KingCCTV cloud technology
      • Support multi-browser(IE, Chrome, Firefox, Safari)
      • support 3G & WIFI extension
      • support P2P, cloud service

    Specifications

    Model No. HK-NVR5604Q HK-NVR5616Q HK-NVR5624F
    Main Processor Hi3535
    Operating System Embedded Linux
    System resource Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up.
    Operation interface 16 bit real color GUI interface support mouse operation
    Display screen 1/4/8/16 1/4/8/16 1/4/8/16/24/32
    Video standard PAL(625 lines, 50fps); NTSC(525lines, 60fps)
    Image encode H.264(High Profile)
    Monitor quality Monitor: D1; VGA: High Definition; HDMI: High definition
    Playback quality 3M/1080P/960P/720P 3M/1080P/960P/720P 5M/3M/1080P/960P/720P
    Decode capability 2*3M 4*3M 2*5M or 4*3M
    Motion detection Each channel can set 192(16*12) detection area
    Audio compression G711A
    Bidirectional talk support
    Record mode manual>alarm>motion detection>timing
    Local playback support 2ch playback support 4ch playback support 4ch playback
    Video search Time, date, event, channel search
    Space occupation Video:CIF 4~5G/day*channel, D1 8~10G/day*channel;960H 12G~20G/day*channel;720P
    20~30G/day*channel; 1080P ~40G/day*channel;Audio:691.2M/day*channel
    Video storage Local HDD, Network
    Back up mode Network backup, USB portable HDD, USB DVD/RW, SATA DVD/RW
    Video input 4*3M/8*1080P/16*960P 16*3M/16*1080P 8*5M/16*3M/24*1080P/32*960P

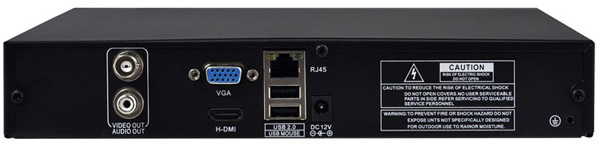

    Video output 1ch VGA, 1ch HDMI
    Video Loop out N/A
    Audio input 1ch RCA
    Audio output 1ch RCA(200-3000mV, 5KΩ)
    Alarm input N/A
    Alarm output N/A
    Network interface RJ45 10M/100M self-adaptive Ethernet port
    PTZ control 1 RS485; support multi kinds of PTZ protocol
    USB port 2 * USB2.0
    HDD port 2 SATA port(2*6T)
    Power 12V/3A
    Consumption less than 15W(not include H.D.D.)
    Working Temperature 0℃ ~ +55℃
    Working Humidity 10%~90%
    Dimension L335*W250*H50
    Weight 2.5KG

    *Design and specifications are subject to change without notice.
