HD 1.0M Network Camera

» Network Camera » HD 1.0M Network Camera

  • 1M/720P HD IR IP camera: HK-HD210(-P)

    CATEGORY AND TAGS:
    HD 1.0M Network Camera

    1)Support iPhone, Windows Mobile, BlackBerry, Symbian, Android)
    2)IR distance:  40M
    3)
    Support FireFox, Chrome, Internet Exploerer
    4)ONVIF Ver. 2.2 conformance
    5)Support POE (optional)

    enquiry
    • Specifications

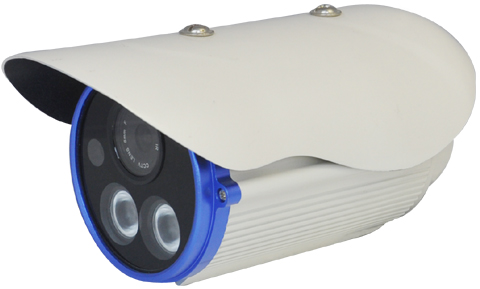

    1M/720P HD IR IP camera

    Model #: HK-HD210(-P)

    Network Features

      • POE is optional
      • Mobile Phone Support(iPhone, Windows Mobile, BlackBerry, Symbian, Android)
      • Support Multiple Browsers such as FireFoxChromeInternet Exploerer
      • Built-in Web server enables the use of a standard Web browser for viewing and management
      • Support dynamic IP address, LAN, Internet (ADSL and Cable Modem)
      • Support protocols: RTSP/ FTP/ PPPOE/ DHCP/ DDNS/ NTP/ UPnP
      • ONVIF Ver. 2.2 conformance
      • Support whole TCP/IP protocol
      • Support CVBS video output and overlying DDNS, user name, password and other info
      • Up to 10 viewers can directly access the camera simultaneously

    Compression Features

      • Embedded RTOS design, dual core DSP(Hi3518E), pure hardware compression, watchdog
      • H.264 Main Profile
      • Up to 25 frames per second in all resolutions ranging up to 720P(1280*720)
      • Support dual stream, AVI format
      • Low power consuming of the DSP, suit to long time running
      • The encoding parameter can be adjusted dynamically (bit rate/frame rate/image quality)
      • Support 0.1M~6Mpbs bit rate adjustable; support 1~30fps adjustable
      • Audio Compression: support two-way audio Bidrectional Talk, support audio and video synchronized output

    Specifications

    Model # HK-HD210(-P)
    System Embedded RTOS design, dual core DSP(Hi3518E), pure hardware compression, watchdog
    Pixel 1.0 Mega Pixel
    Image Sensor 1/4″ 1.0M OV09712 Scan CMOS
    Min. Illumination IR ON 0Lux
    Lens HD 12mm, 4/6/8/12/16mm (optional)
    Lens interface CS
    Day&Night IR-cut
    Compression
    Video Compression H.264 High Profile, JPEG Screen shot
    Main/Extra Stream 1280*720(25fps), 704*576(D1)
    Video output bit rate 32Kbps~16Mbps
    Audio Compression G.711a
    Max. Resolution 1280*720
    Frame Rate 25fps(1280*720)
    Image Setting Saturation, Brightness, Contrast adjustable through Client software or web server
    Network features
    Storage Network storage, TF card storage(optional)
    Intelligent Alarm Motion detect, Video loss, Network disconnection, IP address conflict, Storage full, Storage error
    Protocol TCP/IP, HTTP, DHCP, DNS, DDNS, PPPoE, SMTP, NTP ,RTSP
    Basic Reset button, Anti-flicker, Dual stream, Heartbeat, Password protection
    NVR/HVR YES
    Mobile Monitor Support (iPhone, Windows Mobile, BlackBerry, Symbian, Android)
    ONVIF 2.2
    Multiple Browsers FireFoxChromeInternet Exploerer
    Interface
    Communication Interface 1pc RJ45 10M/100M self-adaptive Ethernet interface
    Video Output 1Vp-p Composite Output(75Ω/BNC)
    General parameters
    Operating Condition -10~60 °C, Humidity 90% or less(non-condensing)
    Power Supply DC12V±10%
    Power Consumption 6W MAX
    Protection Range IP66
    LED 2pcs IR Array LEDs, IR distance 40M
