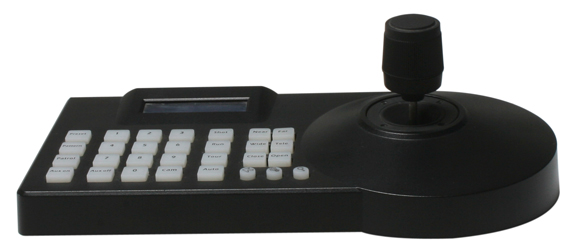

PTZ Control Joystick: HK-C03

CATEGORY AND TAGS:
CCTV Tester/ Keyboard

1)Control PTZ camera as main keyboard
2)Display the current control address' agreement and baud-rate real time
3)Unique control code study function
4)Refurbish the firmware program on line
5)Maximum sub-control: 16
6)Good communication compatibility, built-in many kinds of protocols

enquiry
  • Specifications

PTZ Control Joystick

Model #: HK-C03
PTZ control joystick



Application

Used in the places where need quick control for the high speed dome camera, PTZ , it is the main equipment for man-machine Interface in surveillant system, can be used as main keyboard or branch keyboard.

Features

The flexibility of system is improved wisely as any equipments connect with RS485 can be set in different protocols and baud rates. Due to all the configuration can be done on the LCD display, it is not needed to look for how to change the protocol.

  • Display the current control address’s agreement and baud-rate real time.
  • Unique control code study function, the customer can revise the control code instruction voluntarily.
  • Refurbish the firmware program on line.
  • Maximum sub-control:16.
  • RS485 control bus, control 255 front end address and connect 128 devices in parallel simultaneously at the most.
  • All input and output communication port use anti-radar design, powerful anti-jamming performance, the standard transmitting distance is 1200 meters.
  • Keyboard operation password on/off/lock function.
  • Good communication compatibility, built-in many kinds of agreements.
  • Key-press warning on/off function.
  • Easy backup methods: USB devices, CD-RW/DVD-RW & network download
  • LCD display.

Specifications

Item HK-C03
Protocol Pelco-d, Pelco-d, Panasonic, Hikvision etc.
Baud rate(bps) 1200, 2400, 4800, 9600, 19200
Control Address Control 255 dome camera, decoder at the most, address code: 0-254
Communication Mode RS485 half-duplex
Cascade connection number 16 sub-control at most, controller ID: 0-15
Joystick 3D(control: up, down, left, right, zoom)
Interface Mode 5PIN pressing line port
Menu and Key-press English
Warning Tone Key-touch beep on/off
Power Supply DC 12V±10%
Power Consumption 6W MAX
Working Temperature 0-50°C
Store Temperature -20-70°C
Dimension (mm) 420*260*170
Weight (Kg) 1.3kgs



Dimension

keyboard dimension
