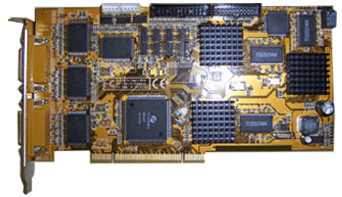

16ch Hikvision Hardware Compression DVR Card

Model #: DS-4016HSI

16ch hikvision dvr card

    Note:
    DS-4016HSI can be set as 8 Channels QCIF/CIF/DCIF/4CIF compression resolution, not support dual encoding. One chipset compress 8 channels video image.
    DS-4016HSI: Two chipsets compress 16 channels CIF
    DS-4016HCS: There chipsets compress 16 channels CIF

    Available Models

    Cards are stackable to obtain 64 channels maximum
    DS4016HSI
    16 channels video and audio CIF(real time)
    or 16 channels video and audio 4CIF (not real time, record frame about 3 frames, and preview image will loss frame)
    or 16 channels video and audio DCIF (not realtime,record frame about 5 frames,and preview image will loss frame)

    Features & Functions

    1. Real-time video and audio compression, no frame lost
    2. H.264 (MPEG-4/Part 10) video compression standard leads to high compression ratio and good video quality OggVorbis audio compression standard, with 16 kHz sampling rate and 16 kbps output bitrate
    3. Real-time video and audio compression, no frame lost
    4. 4CIF preview resolution
    5. Support Windows2000/XP
    6. Setable I.B.P frame sequence
    7. Setable video quality and bitrate
    8. Setable brightness , contrast , saturation and hue of video signal
    9. Support motion detection
    10. Support OSD , LOGO and MASK overlay
    11. Not support capture image
    12. Not support double encoding

    Specifications

    Item Description
    Video Format PAL and NTSC
    Video Input 16 Ch BNC (1.0Vp-p, 75ohm)
    Audio Input 16 Ch BNC (2.0Vp-p, 1Kohm)
    Preview Resolution Resolution: 704*576(PAL),704*480(NTSC)
    Video Compression H.264, Support CBR, VBR; Frame: 25F/s(PAL),30F/s(NTSC); Output: 32kbps-1000kbps(CIF)
    Compression Resolution CIF: 352*288(PAL), 352*240(NTSC); QCIF: 176*144(PAL), 176*120(NTSC)
    Audio Compression OggVorbis, Sample ratio is 16KHz, Output ratio is 16kbps
    Power Consumption Less than 4.5W
    Working Temperature -10°C ~ +50°C
    Working Humidity 10%~90%
