8-Port 10/100/1000M POE SWITCH:HK-POE3008H

CATEGORY AND TAGS:
CCTV Accessories, PoE Switch

1)8* 10/100/1000Mbps auto-sensing RJ45 ports, auto MDI/MDIX.
2)Gigabit non-blocking wire-speed forwarding, keeps network fluent.
3)Full duplex and half duplex, preventing frame loss from port blocking.
4)Auto-detecting of parallel / cross line. Simplify the network structure and maintenance.
5)Store and forwarding mode.
6)Support MAC self learning and updating
7)Support connection with IP Cameras and wireless AP.
8)Plug and play, no need more configuration.
9)Support desktop/wall mounted installation.
10)Low power consumption design. Low power consumption design. Energy-saving and green. Max total power consumption < 6W.

Downloadenquiry
  • Specifications
  • Download

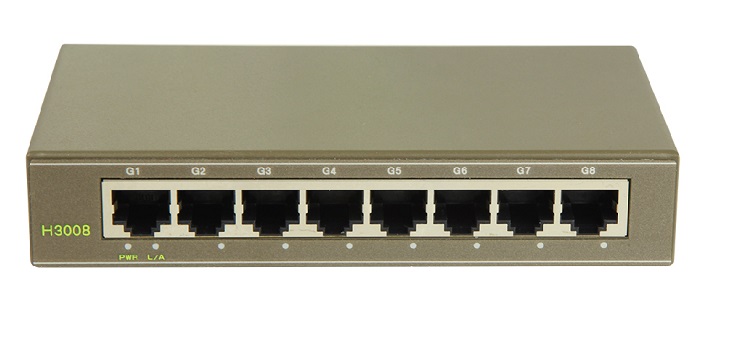

8 Ports 10/100/1000M POE Switch HK-POE3008H

8 Ports 10/100/1000M POE Switch HK-POE3008H

Description

POE3008H is designed as CCTV surveillance Network Switch for simple network environment including home, school dormitory, office and small scale surveillance system etc. Large-capacity cache chip design and full port support wire-speed forwarding mode ensure 7*24 hours stable and smooth for video and data transmission. 8*10/100/1000M auto-sensing RJ45 port. Full duplex rate up to 200M. Auto-identify parallel lines and cross lines. Plug and play, expand high-speed network in a fast way.
A housing made of 0.8 mm galvanized industrial-grade steel plates for excellent durability, heat dissipation performance, ensuring stable switch operation, a long service life, and more reliable outdoor security surveillance. Support desktop/ wall mounted installation way. Fashionable design. Can be connected with any computer, printer, smart TV, NAS, wireless AP, NVR and IP Camera etc.

Technical Specification

Product Name 8-Port 10/100/1000M Network Switch
Model HK-POE3008H
Interface 8* 10/100/1000Mbps auto-sensing RJ45 ports(Auto MDI/MDIX)
Network Media UTP 10Base-T: Cat.3/4/5 (≤100m)
UTP 100BASE-TX: Cat.5/Above (≤100m)
UTP 1000BASE-TX: Cat.5e/Above (≤100m)
Forwarding Mode Store-and-Forward
Forwarding Rate 11.9Mpps
Back-bound Bandwidth 16Gbps
Buffer Memory 4M
MAC Address Table 8K
Standard Protocol IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab, IEEE802.3z
Access Control CDMA/CD
LED Indicator 1*power LED,8* Link/Act LEDs
Power Consumption Standby State: 0.7W. Max power consumption < 6W
Power Input AC:100~240V;50~60Hz 0.5A
Power Output 9V/1A  (External power adaptor)
Dimension 142mm*78.8mm*27mm(L*W*H)
Working Environment Working Temperature:-20℃~55℃
Storage Temperature: -40℃~70℃
Working Humidity: 10%~90%  Non-condensing
Storage Humidity 5%~90% RH(non-condensing)
Certification CE, FCC, RoHS
Packing List 1*Fast User Guide & 1*Warranty Card
1*8-Port Network Switch
1*Power Adaptor (9V/1A)
Warranty 1 Year
